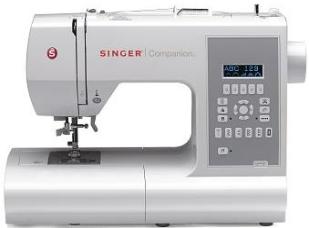

Electronic Sewing
Machine with Push-Button
Stitch Selection
|
|
With just a simple push of a button you have selected the
stitch as well as the optimum settings for length, width,
balance, pressure and tension.
|
QuickThread™ Bobbin
System
|
|
Simply place the wound bobbin into the bobbin case, then run
the bobbin thread through its guide. The machine will automatically draw up
the bobbin thread for you!
|
|
Select a stitch, and an illustration of the stitch is displayed on
the LCD screen. The LCD provides clear and easy viewing of
stitch patterns, including stitch width and length.
|
|
A large variety of stitches for construction, fashion sewing,
quilting, heirloom, crafts, home decorating and decorative
sewing always ensures the perfect stitch for every project.
|
|
Personalize projects by adding a monogram, name or phrase
with the Built-In block style Alphabet.
|
Built-In Stretch Stitches
|
|
Specially designed stitches that add strength and flexibility to
seams, especially useful when sewing on knitwear. Some
of the stretch stitches can also be used for decorative
embellishment.
|
|
This stitch is designed to look like hand sewing for topstitching or quilting.
The Hand-Look Quilt Stitch is especially valuable to quilters, crafters and
heirloom seamstresses.
|
|
Optimal settings for length are automatically adjusted when
choosing a stitch. They can be overridden to personalize
length choice.
|
|
Optimal settings for width are automatically adjusted when
choosing a stitch. They can be overridden to personalize
width choice.
|
|
When tapering with the zigzag stitch, the stitch tapers to the
center, not the left or right. This provides a more attractive
look when tapering into or out of a point.
|
Automatic Tacking Stitch
Function
|
|
Tie-off decorative stitches with just a push of a button. With 4
tiny tacking stitches the start and end of the pattern is reinforced.This ensures
quality stitching and prevents raveling
|
Automatic Tie-Off
Function
|
|
With just a push of a button the 7470 will sew 4 stitches forward and then 4
stitches in reverse at the start of Straight Stitching. At the end press the
reverse button again and the machine will sew 4 stitches in reverse and then
4 stitches forward and then stop. The Automatic Tie-Off Function reinforces
the start and end of seams for stronger stitching.
|
|
Push the conveniently located Automatic Reverse Button to
sew in reverse and reinforce the stitch.
|
|
Most stitches can be set for a maximum width of 6mm. When
sewing decorative stitches or satin stitches, the wide stitches
are bolder and more pronounced.
|
One-Step Automatic
Precisely Balanced
Built-In Buttonholes
|
|
Choose from 6 different one step buttonhole styles. Buttonhole
sewing is a one step simple process, providing reliable
results. Each side of the buttonhole is sewn in the same
direction, creating beautifully balanced buttonholes.
|
Exclusive Buttonhole
Underplate
|
|
This is a SINGER® developed system that sandwiches fabric
between a lower plate and the foot, to ensure perfect buttonholes on multiple
layers of fabric. Effectively, this is like a
mini-embroidery hoop in which the machine feeds the
attachment, rather than the fabric. It makes creating buttonholes possible in
places that conventional buttonhole devices cannot easily reach.
|
Exclusive 3-Step Infinite
Length Bar-Tack
Buttonhole
|
|
Create a buttonholes with endlessly long sides. This is ideal
when sewing non-traditional sized buttonholes. There are no
size limitations with this buttonhole.
|
Electronic Twin Needle
Control
|
|
Stitches are automatically adjusted for twin needle sewing
with just the touch of a button. Twin needle sewing creates
two parallel rows adding a decorative touch.
|
|
Needle position can be adjusted for techniques, such as
inserting zippers or cording, and also topstitching.
|
Programmable Needle
Up and Down
|
|
Select whether the needle is up or down when the machine
stops. It is beneficial to have the needle stop in the down
position when appliquéing, quilting or pivoting fabric. When
removing the fabric from the machine, it is easier if the needle
is raised to highest position.
|
|
A memory bank holds full names and simple phrases.
|
|
Editing is simple. A cursor button can be moved through the
20-space memory. If a stitch or letter needs to be removed,
use the editing button.
|
|
Just touch a button and stitches can be mirror imaged.
|
|
Just touch a button and stitches can be sewn either as a
single pattern or can be sewn continuously.
|
|
4 audible and visual warning messages alert the sewer. The
messages make for trouble-free sewing.
|
|
Thread a machine in 6 seconds! No tediously following
manual’s instruction to thread the machine, just follow the
arrows on the machine...and you are threaded in a snap.
|
Automatic Needle Threader
|
|
After effortlessly threading the machine this feature
automatically threads the eye of the needle!
|
|
An audible tone confirms pattern and function selection.
|
|
This system ensures stable stitch quality, whatever type of
fabric is being used.
|
Automatic Presser Foot
Pressure Control
|
|
The amount of pressure exerted on the fabric by the presser
foot against the feed dogs is automatic. Sew from the lightest
weight tricots to the heaviest denim, without making adjustments.
|
|
The bobbin case floats above the hook, precluding thread
jams. The machine will not jam, even when sewing on sheer
fabric or no fabric at all! The bobbin loads from the top, so it is
easy to insert the bobbin. The clear cover makes it easy to
monitor the bobbin thread supply.
|
Automatic Bobbin Winding
Clutch
|
|
Needle bar automatically disengages when winding the
bobbin, making bobbin winding more convenient.
|
Extra-High Presser Foot
Lifter
|
|
When the Presser Foot Lifter is in extra-high position it offers more clearance,
which is needed when placing multiple layers of bulky fabric under the
presser foot.
|
|
The lamp illuminates the sewing surface for optimal viewing. The long-lasting
bulb (100,000 hours) stays cool, regardless how long the machine is
operated.
|
|
There are 6 points of contact between the fabric and the
feeding system. The more contact points the better the fabric feeds. With
6-segments even lightweight fabrics feed
smoothly.
|
|
The 7470 retains the width and/or length override setting. The machine
remembers, so you don’t have to! Select a pattern, override the width and/or
length, and the machine will remember those changes. Select a different
pattern and then return to the overridden pattern - - - the override settings will
still be in place.
|
|
This is a feed dog motion that moves the feed dogs in a box motion, rather
than the historic arc motion. Box motion
assures perfect feeding throughout the entire feed process, as the feed dogs
are always in perfect and equal contact with the fabric and presser foot.
|
|
A conveniently located lever, easily and effortlessly moved,
will lower the feed dogs for free-motion embroidery, monograms, and for
attaching buttons.
|
|
The internal skeleton of the sewing machine. This rigid
support holds all the mechanisms in perfect alignment for
perfect, skip-free sewing.
|
Electronic Stitch Formation
|
|
All stepper motors are electronically controlled. Digital
electronic control of the stepper motors that control the
pattern formation allows for perfectly formed patterns every
time.
|
|
This is a SINGER® name for a control system that senses
when additional power is required to maintain speed through thick or
changing fabric conditions. This feature is most useful when sewing through
multiple (6-8) layers of fabric.
|
Electronic Foot Controller
|
|
Guarantees consistent sewing speed with no jump starts.
|
|
Change from one to another effortlessly with a simple push of the foot
release button.
|
|
Keep the accessories in the Extension Table Storage area,and they are
always within reach.
|
